40V Servo

Top of PCB

Features

  • Position measurement
  • Current sensing
  • 50V tolerant H-bridge
  • I2C communication

Authors

Board Design: Shin Umeda
Documentation: Shin Umeda

Active Revisions

N/A, still in production

Summary

The 40V servo was conceived to fulfill the purpose of a high-voltage tolerant high-torque small "smart" motor. It is intended to communicate over I2C, and is capable of position control, velocity control, torque control, and more.

Any motor can be used with this, since current is controlled by the H-bridge.

Design Notes

  • R2 is the current limiting resistor. See schematic and datasheet on selecting resistor size.

Additional Resources

PCB Images

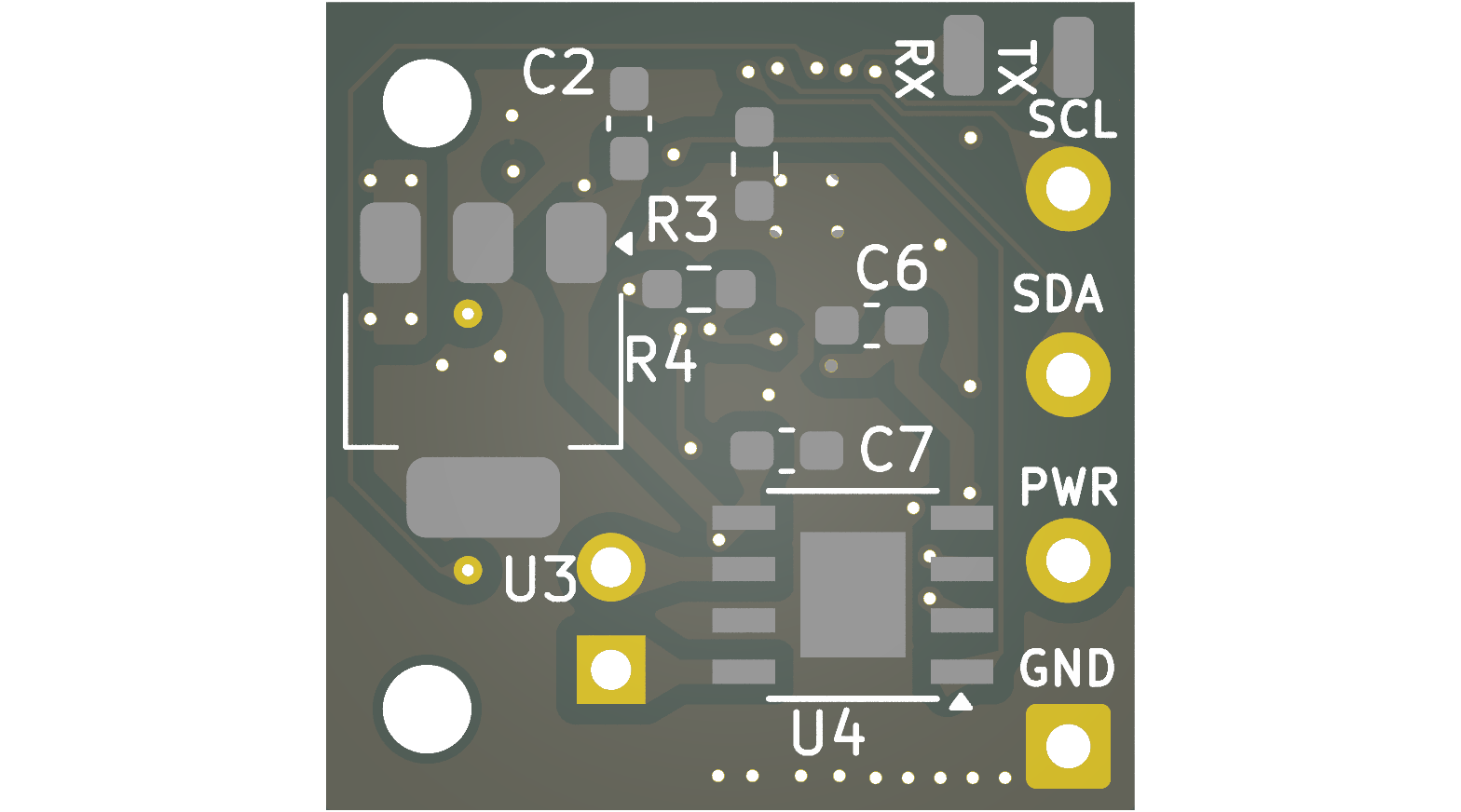

Top of PCB Bottom of PCB

Schematic

Schematic
